1 Product Overview
ADS-B Dual-channel ground station is a new generation of air traffic management equipment suitable for air routes and airport scene surveillance. It consists of a dual-channel multi-channel receiving antenna, a signal processing unit, a data fusion processor, a high-precision timestamp generator, a coding unit, and a data network unit receiving unit, which has the ability to receive ADS-B messages and A/C/S answer messages. PassADS-B ReceiverObtain static information about the target (such as Modes S, flight number, model) and dynamic information (such as position, height, speed, course) to achieve accurate positioning and monitoring of aircraft broadcasting ADS-B messages within a 450-kilometer range. Through the A/C/S message to obtain the target batch number and height information, further through the network of multiple ground stations, using the target to the time difference information of each ground station to achieve the broadcast A/C/S message non-cooperative targets for location identification and tracking monitoring.
2 Performance parameters
| Applicable standards | RTCA DO-260B |
| Operating frequency | 1090±1MHz |
| Function distance | ≥370km |
| Monitor the number of targets | ≥1000 |
| Receive sensitivity | ≤-87dBm |
| Dynamic Range | ≥60dB |
| Anti-jamming capability | Ability to resist A/C interference |
| Decoding formats | DF17/DF18/DF19, other S modes can be extended as needed |
| Data formats |
The "Three Airways" data format is available by default and is available in Asterix cat 021 format Or user-defined formatting |
| Data interface | RJ45 (air plug) |
| Power supply Mode | |
| Operating temperature | -40℃~+60℃ |
| Operating Humidity | 10%~90% |
3 Product Showcase

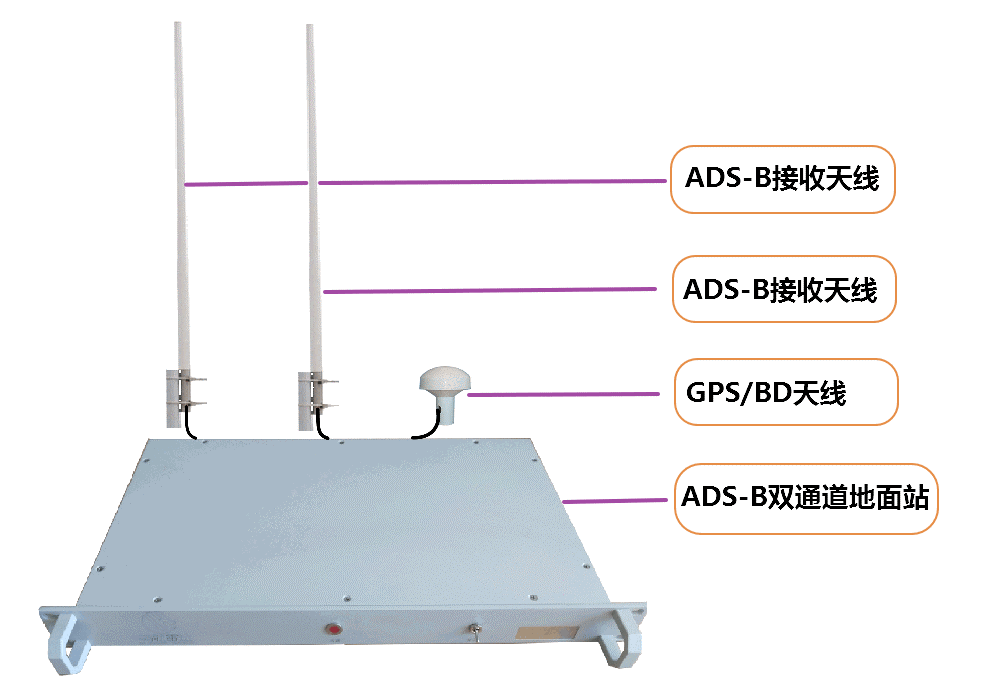

ADS-B Dual-channel ground station equipment
4 Application Cases
The product has been extended to Shandong, Anhui, Zhejiang, Yunnan and other cities of the airport as the airport area surveillance use, as the air control radar backup and support system. The system has the characteristics of long distance, high precision, large quantity, full attribute, wide spatial coverage and high output data rate, and is suitable for ground monitoring of regional civil aviation aircraft and low-altitude open-air aircraft. Among them at Xiaoshan Airport plan to scene guide car and ferry car plus carADS-B transmitterEquipment, the realization of close proximity, runway take-off and landing and scene aircraft and vehicles seamless monitoring.

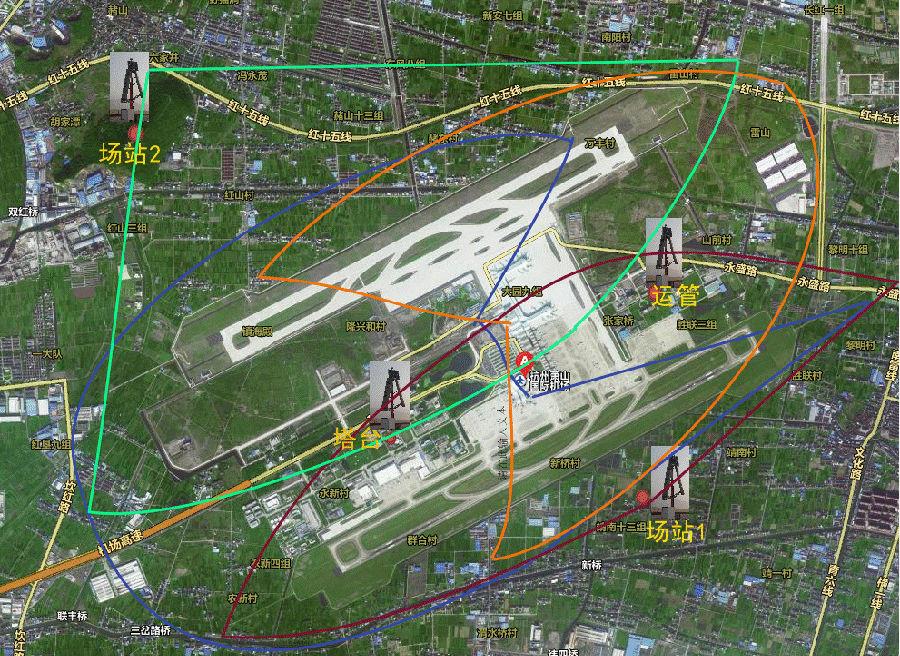

Diagram of the layout of the ADS-B Earth station at an airport

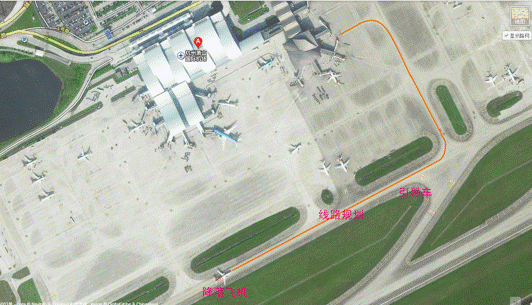

Airport ground aircraft, vehicle guide tracking
