First, the system introduction
Intelligent shared radar Sea Area monitoring platform consists of front-end sensor devices, front-end protocol conversion devices, distributed network servers and back-end application layer APIS. The front-end sensor equipment includes multi-type radar, photoelectric,ADS-B Simulator, AIS, and sonar; Protocol conversion Equipment is responsible for the data and control protocol of multi-type equipment to unify, easy to connect to the network; Distributed Web servers on the one hand to achieve the front-end sensor data deep processing, such as the start of the target, tracking, alarm, storage, and so on, on the other hand to complete the user access request response The back-end API application layer is an application interface that the platform opens to different users, and users can develop PC-side, mobile, or web-side applications based on the platform's APIS. The advantage of the platform is to share the various sensor resources within the platform for users, and according to the powerful data based on servers and storage equipment and other resources, for the marine economy to provide a strong sharing development technology platform.

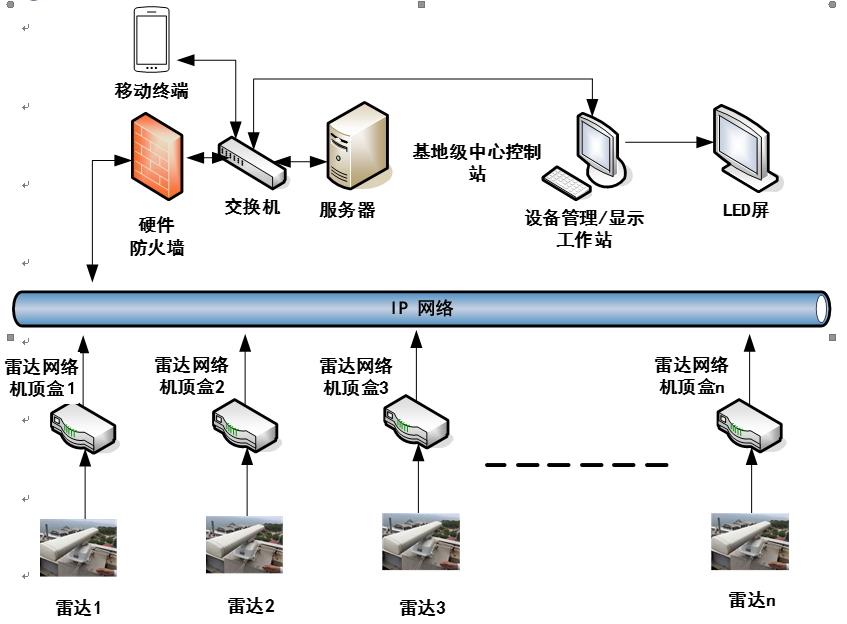

Intelligent shared radar Marine monitoring platform architecture

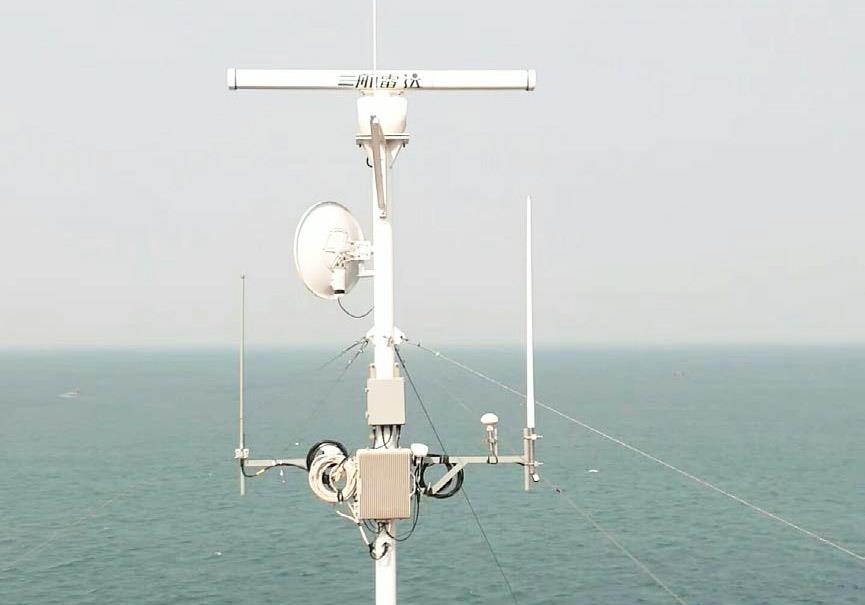

Front-end radar, photoelectric, data acquisition and network transmission equipment
Second, the application prospect
The system is based on the internet of Things (IoT), through the network of mobile phone terminals can remotely control any of the network of radar, remote control. It can be used in regional mariculture surveillance and other fields.
III. Application Cases

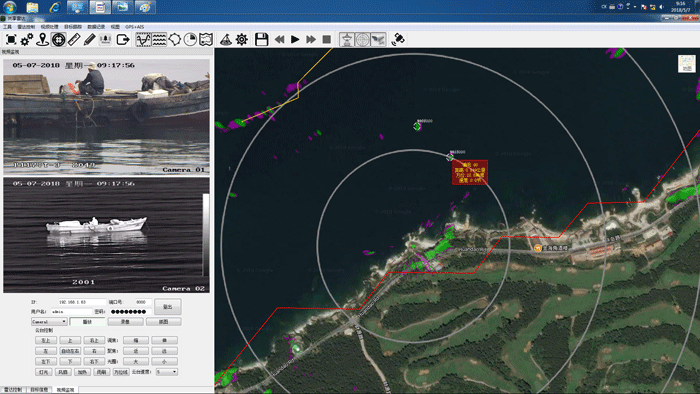

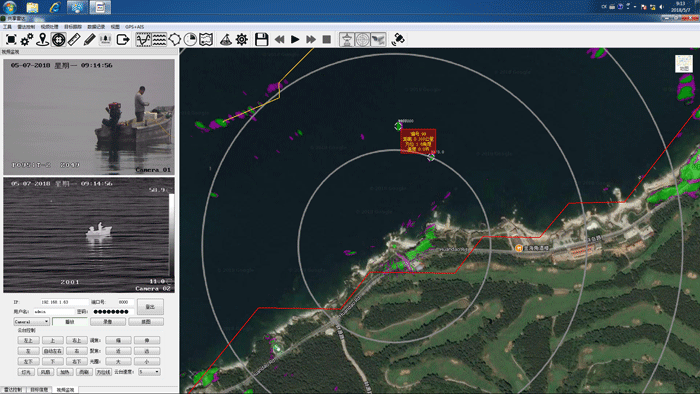

Yantai yangma Island Sea cucumber fishing site, radar photoelectric combined to play a powerful role. Has successfully provided strong evidence for an evening stay dispute in the farming culture, which is popular with fishermen.
Yangma Island Sea Cucumber Breeding Care
