Product profile
Unmanned airborne to sea radar ADS-B/AISThe use of miniaturization design, to meet navigation, drones, balloons and other platforms to obtain air aircraft and water ships related information, for customs, sea supervision, fishing, maritime search and rescue departments of the airborne platform on the air target acquisition.
2 Performance indicators
Operating frequency:
ADS-B:1090MHz；
Ais:161.975mhz, 162.025MHz
Receive sensitivity:
ADS-B：≤-90dB；
AIS：≤-107dBm；
Detection Power Range:
ADS-B: visual distance; generally greater than 400km;
AIS: visual distance; closely related to the height of receiver installation;
Power consumption: 6W
Dimensions (including interface): 90*58*25mm
Weight: 200g
Operating Temperature: -40~+85℃
Storage Temperature: -50~+90℃
Equipped with AIS dual-channel receiving front end for direct sampling of AIS RF signals
AIS data message extraction, data decoding and storage
Possess ship database, ship data query can be carried out
External Data transmission mode: RS422 serial communication
Wide power supply

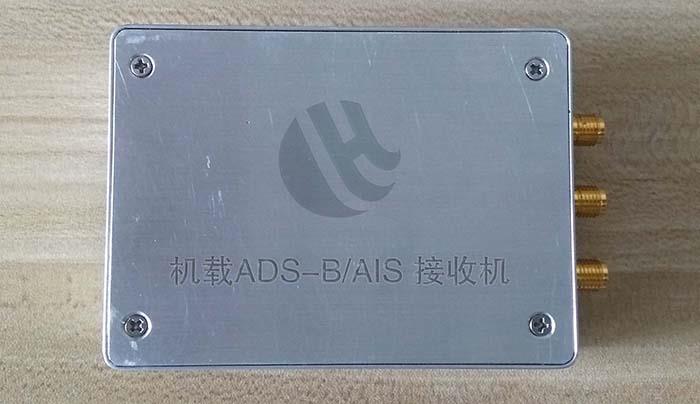

Airborne ADS-B/AIS Receiver

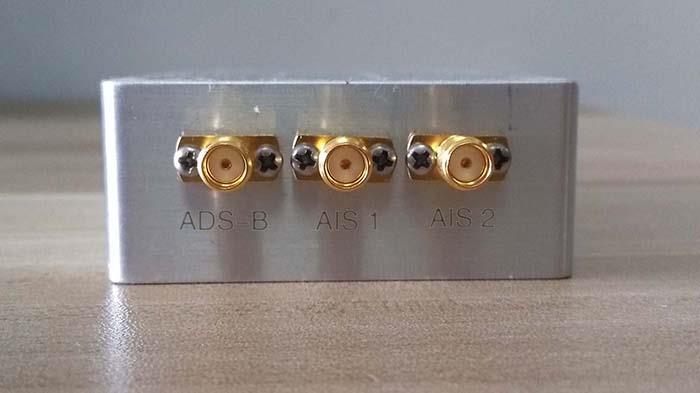

Receiver RF Interface

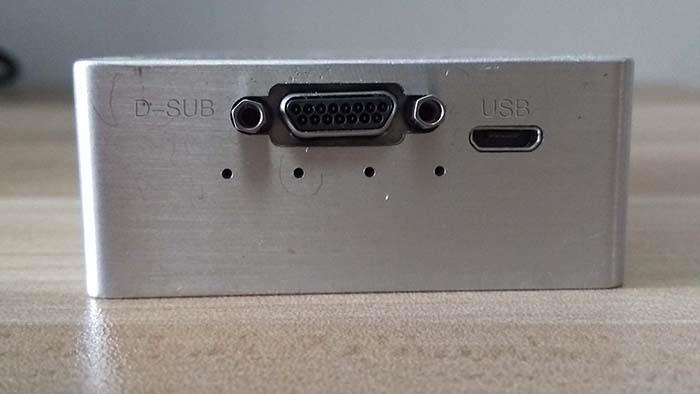

Receiver Data Interface
3 Fields of Application
On-board platforms for customs, sea supervisors, fishing, maritime search and rescue departments to quickly receive and identify air and sea targets
